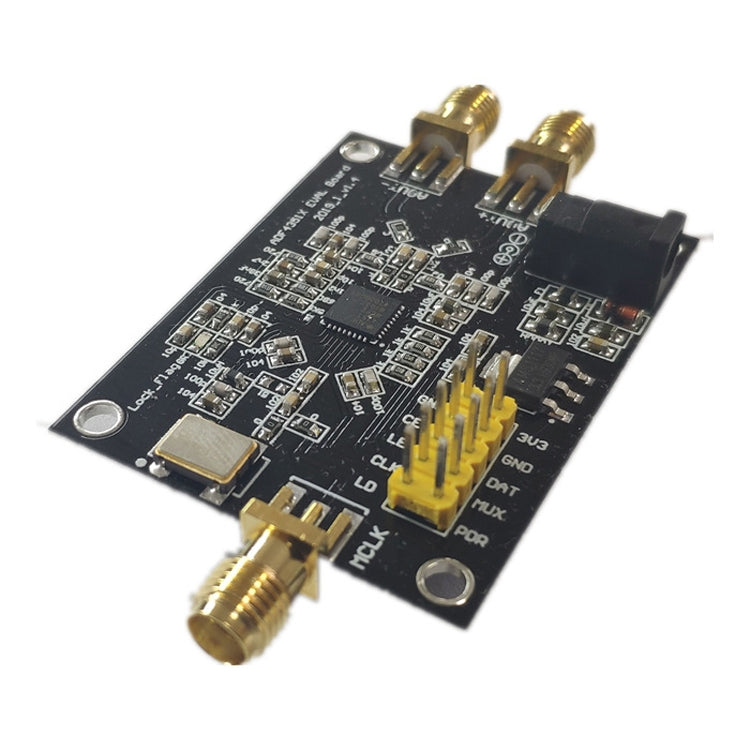

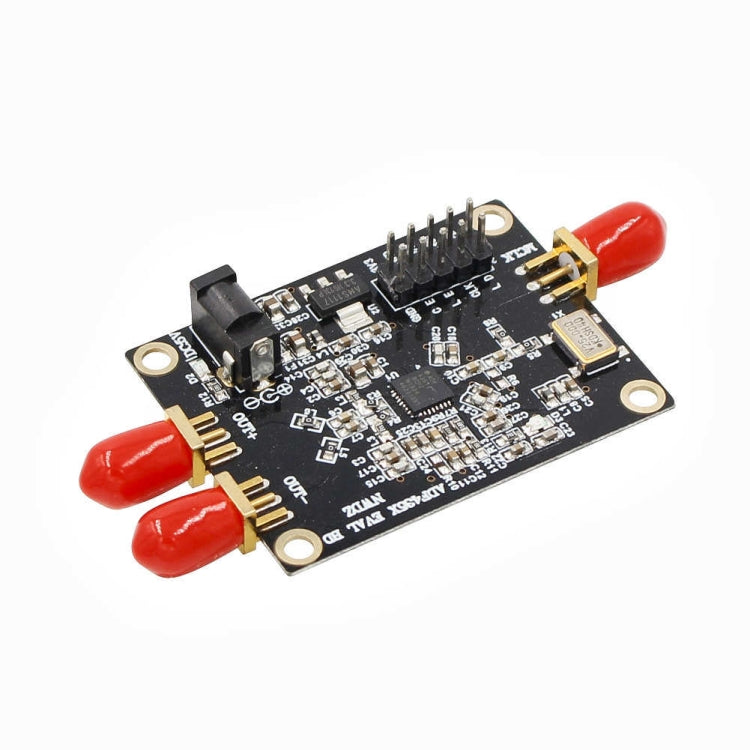

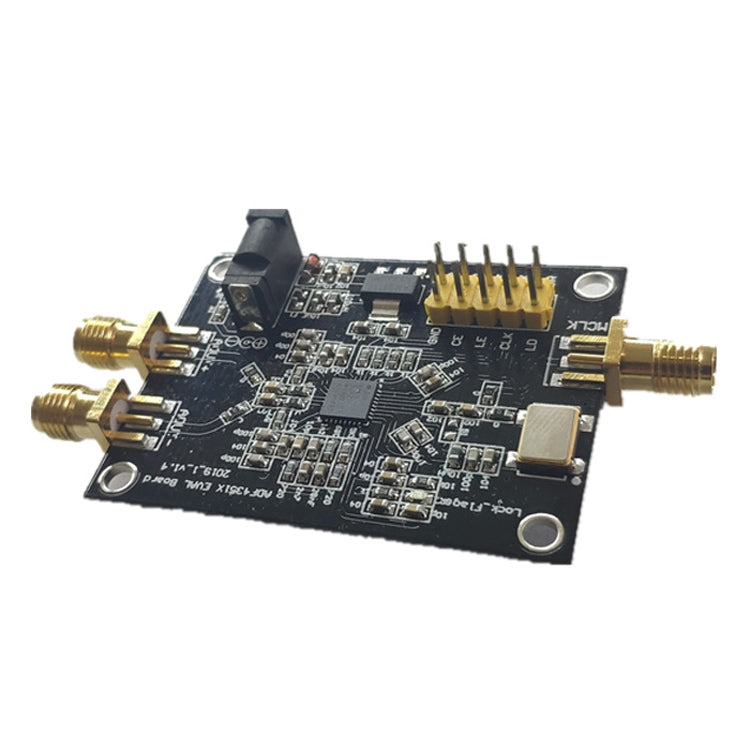

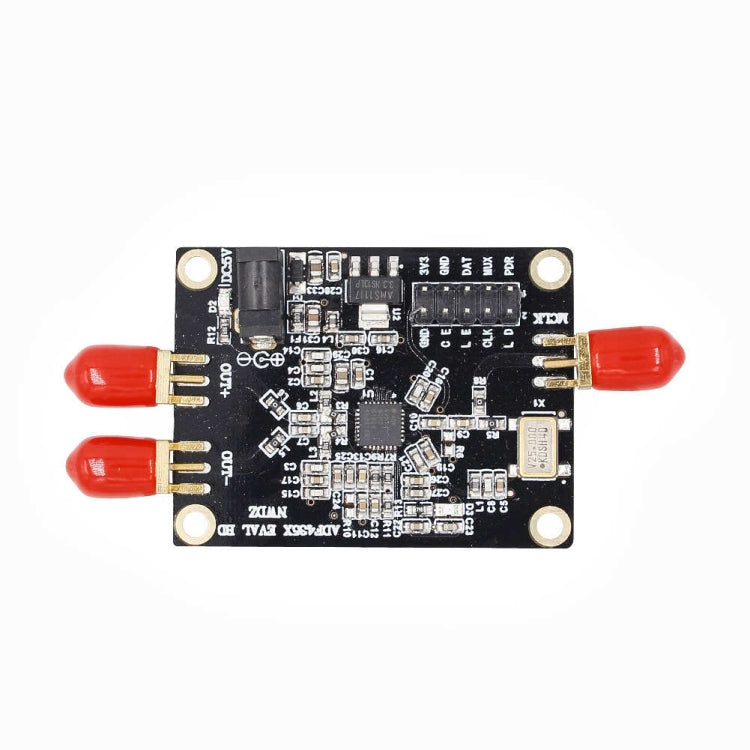

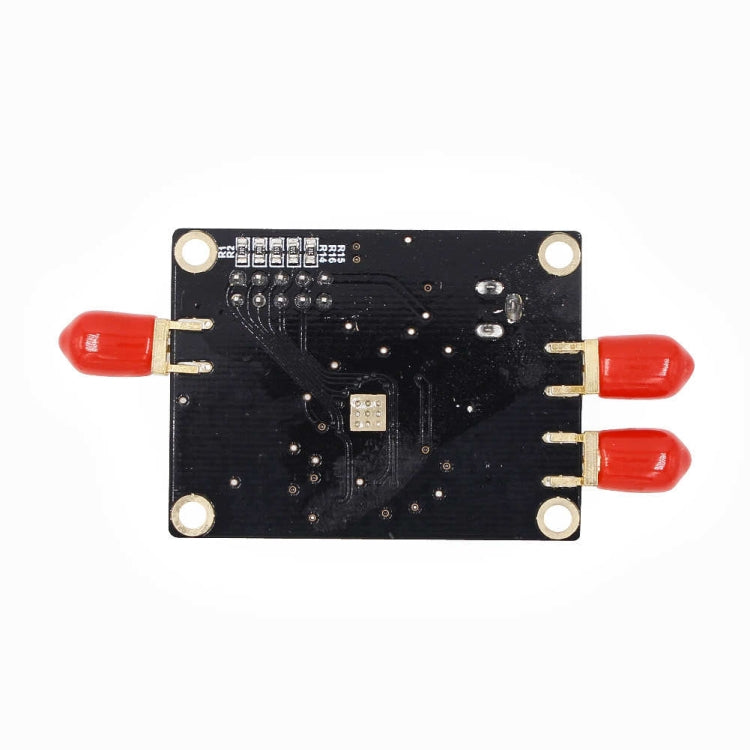

ADF4351 Module Development Board Phase-Locked Loop PLL RF Signal Source

Name: ADF4351 Module Development Board Phase-Locked Loop PLL RF Signal Source
Brand: PMC Jewellery
SKU: TBD06022728
Price: 579.00 ZAR
Availability: InStock

R 579.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Output frequency range: ADF4351: 35M-4400M (4.4G)
2. Output signal: 2200M-4400M fundamental wave (sine wave) 35M-2200M fundamental wave frequency division (square wave)
3. Output signal interface: SMA female
4. Control mode: three-wire SPI, lead out control pin and lock status pin, can realize all functions, including point frequency, sweep frequency and frequency hopping, step can reach 1K, low frequency step can reach 0.1K, according to crystal frequency to decide.
5. It can be powered by 3.3v pins, and the power supply can provide a current of not less than 500mA.
6. Typical power supply is 5v
