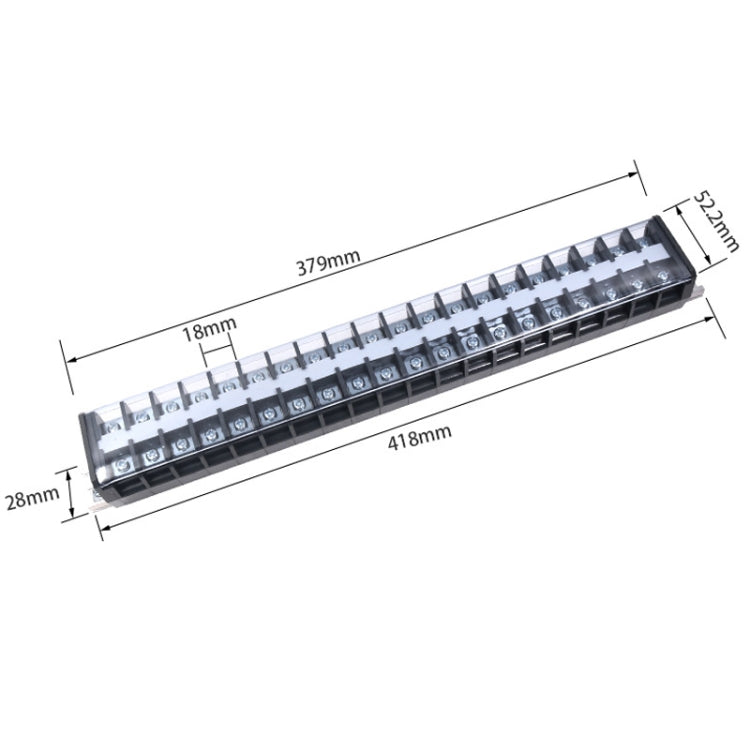

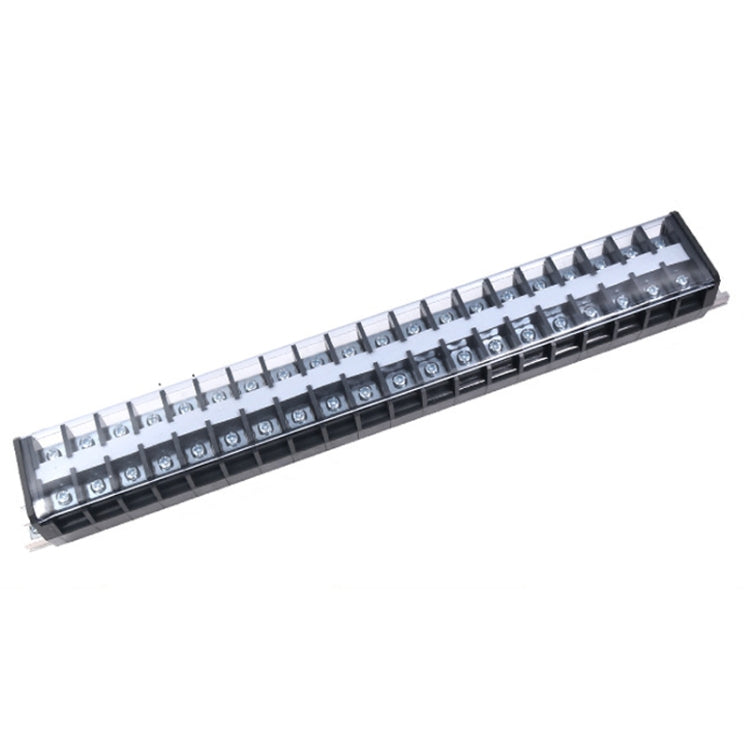

CHINT TD-6020 Terminal Block Rail Type Wiring Block Paralleling Wires Wire Connector
CHINT TD-6020 Terminal Block Rail Type Wiring Block Paralleling Wires Wire Connector
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 hurry while stock lasts!
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 working days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- For orders under R2000 - No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
- For all orders over R2000, we are unable to offer DDP (Delivered Duty Paid), and you will be responsible for any import duties, taxes, and customs clearance fees.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
1. TD series terminal block, the shell is not fragile, screws do not slip teeth, thickened copper, strong electrical conductivity

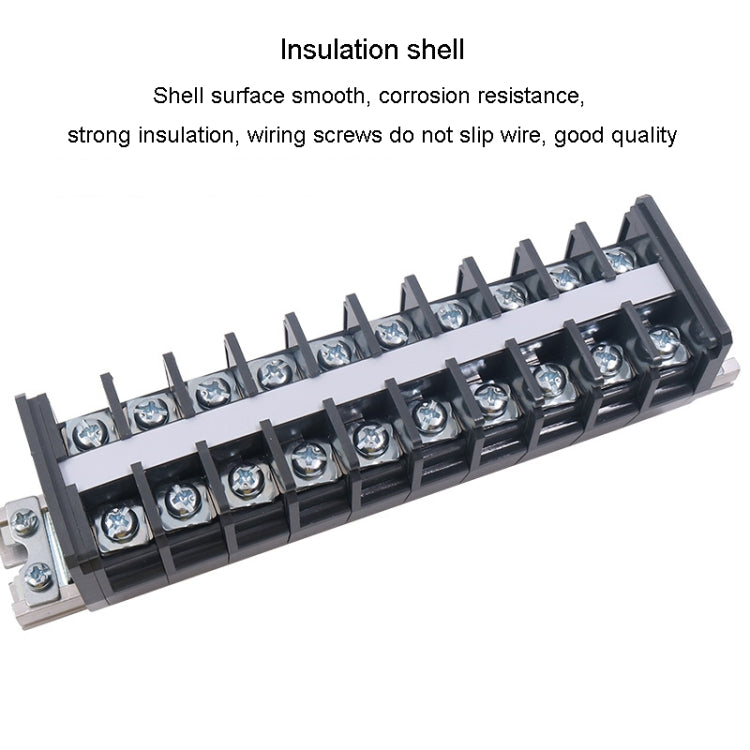

2. Insulated shell, shell surface smooth, corrosion resistance, strong insulation, wiring screws do not slip, good quality
3. Aluminum rail, aluminum rail installation, lightweight and solid, not rusty

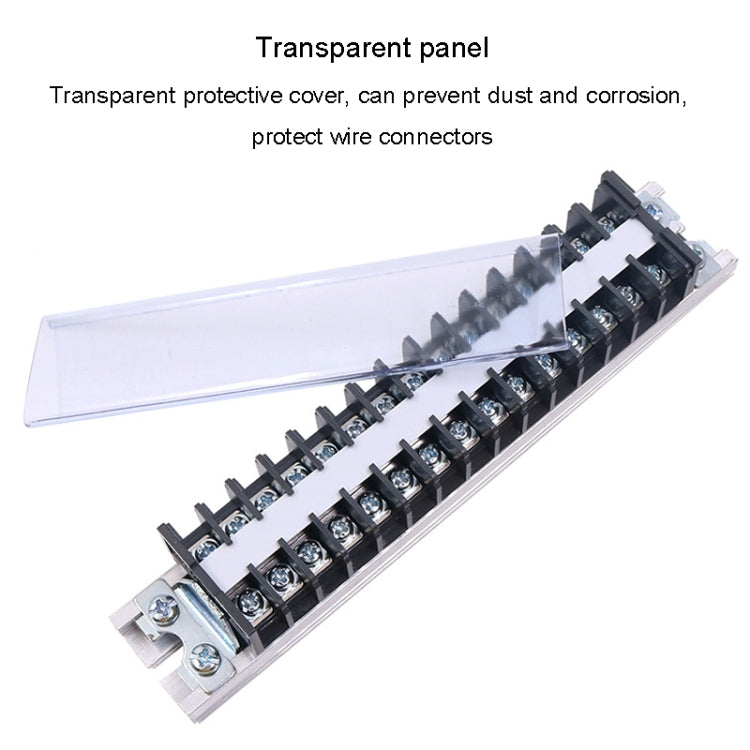

4. Transparent panel, transparent protective cover, can prevent dust and corrosion, protect wire connectors
5. Scope of application: TD series is suitable for AC 50Hz or 60Hz, rated voltage up to 660V, rated current up to 200A power and control circuits, between the wires for connection purposes
6. This series of terminal block adopts screw crimp connection, the end of the wire must be crimped TU-type or TO-type end before connecting with the terminal block, the terminal block has a protective cover, and is installed by C-type mounting rail
7. Conformity standards: GB/T14048.7, IEC60947-7-1
8. Current: TD1510-TD1550: 15A, TD2010-TD2020: 20A, TD3010-TD3020: 30A, TD6005-TD6010: 60A, TD10010: 100A
9. Screws: TD1510-TD1550: M3, TD2010-TD2020: M4, TD3010-TD3020: M5, TD6005-TD6010: M5, TD10010: M5
10. Wire section: TD1510-TD1550: 0.75-1.5mm, TD2010-TD2020: 1-2.5mm, TD3010-TD3020: 1-6mm, TD6005-TD6010: 4-10mm, TD10010: 6-25mm
