Description
The DCUU PM2818C AC 40A Intelligent Electrical Parameters Measuring Instrument is a current and voltage tester. It is designed for everyday use to measure various electrical parameters in residential or commercial settings.
- Product Type: Current & Voltage Tester
- Compatibility: Intelligent Measuring Instrument (EU Plug)
- Display Mode: 4.3-inch color liquid crystal display
- Measurement Data: Voltage, current, power, power factor, frequency, harmonics, electric energy, voltage ripple, current ripple, apparent power, reactive power, peak voltage, peak current, average power
- Input Voltage: 3.0V~600V
- Current Range: 5mA~40A

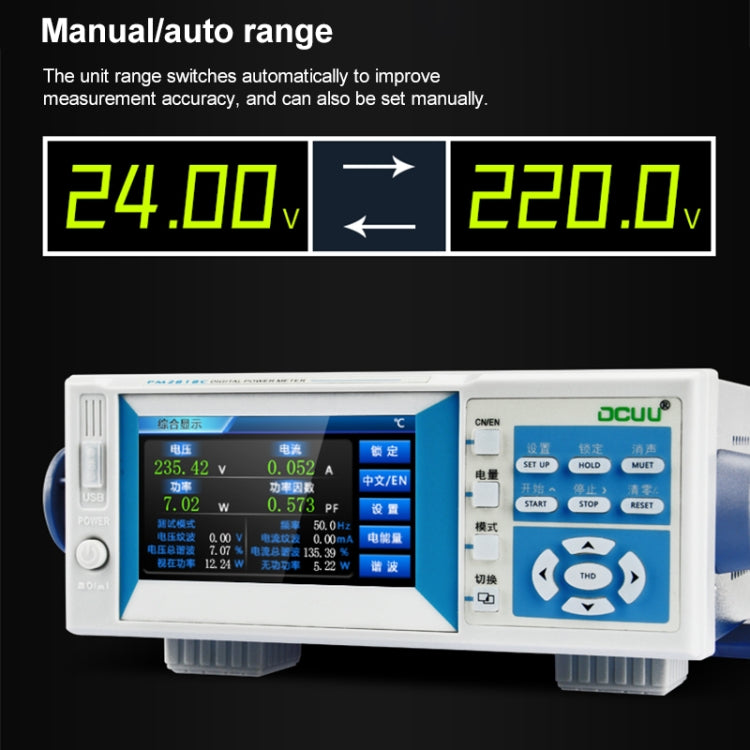

- Range Switching: Automatic
- Measurement Mode: AC
- Power Factor: -1.000~1.000
- Frequency Range: AC: 45Hz~65Hz, bandwidth 5Khz

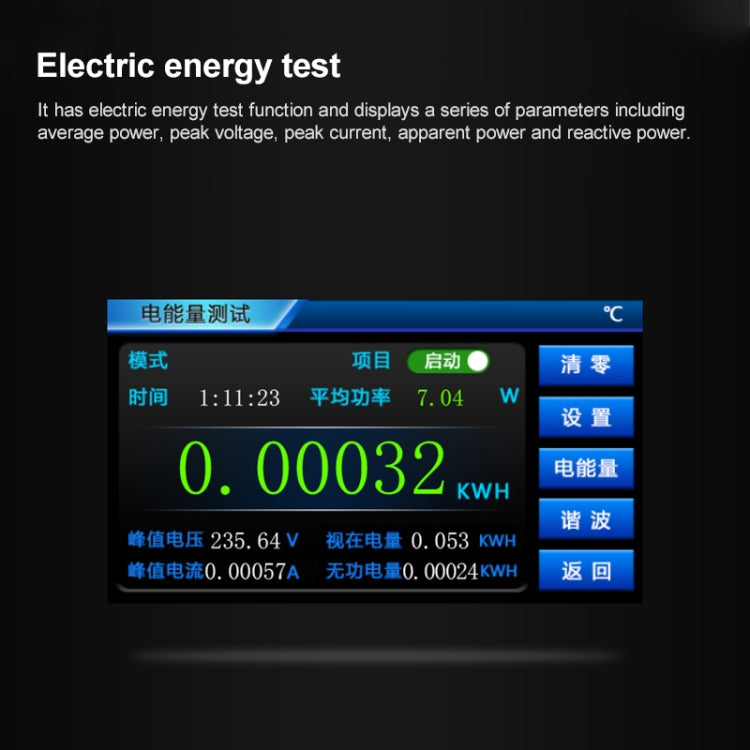

- Electric Energy: +/-0-999.999kWh

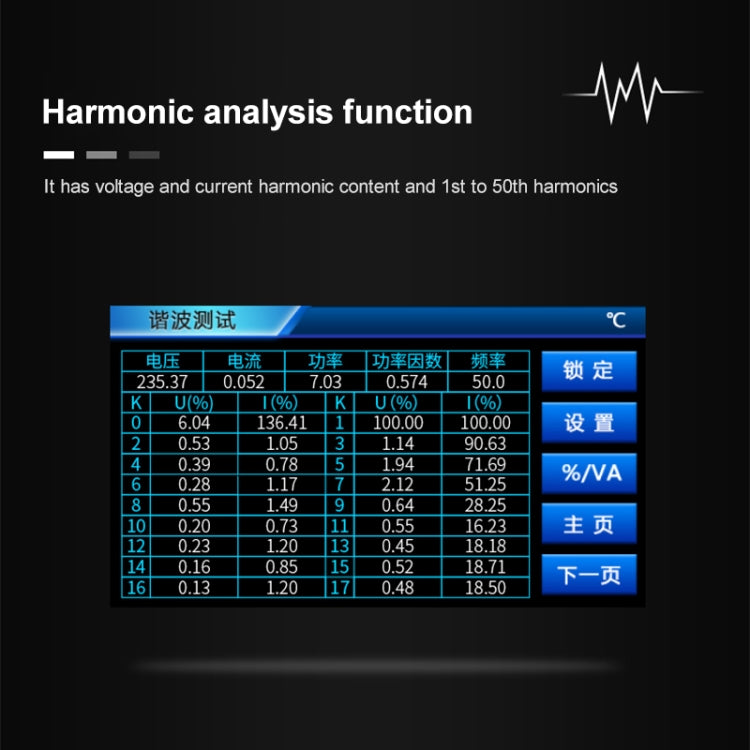

- Harmonic Analysis Function: Displays total harmonics and 2~50th harmonic components
- Measurement Accuracy: +/- (0.4% reading + 0.1% range + 1 word)
- Upper and Lower Limit Judgment Function: Current and power upper and lower limit setting, judgment and alarm functions
- Latch Function: Data fluctuations for easy reading
- Measurement Speed: 5 times/second
- Volume/Weight: Width x Height x Depth: 213 x 104 x 470mm; 3KG
- Package List: Host x 1, Power cord x 1, Product manual x 1, Product certificate x 1
