Measuring Electron Microscope Industrial Camera, Specifications: 4K Dual Interface With Measurement
Measuring Electron Microscope Industrial Camera, Specifications: 4K Dual Interface With Measurement
hurry! almost sold out...
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING on all orders. Fully Insured.
Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time 7 - 15 working days.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
2. Video output frame rate: HDMI output 3840X2160@30fps; 1920??1080P@60FPS; USB output 3840X2160@60fps; 1920X1080P@60fps (Store advice: USB output 4k computer configuration must be high, otherwise it will not be able to carry 4k and there will be screen flickering. Those who mind should be careful when shooting)
3. Photo pixels: HDMI photo 41 million pixels, USB photo 16 million pixels
4. Video output: 1920X1080P (HDMI interface) resolution
5. Digital zoom: 7x digital electronic zoom
6. Color: color/black and white/reverse color
7. Storage: 128GB TF memory card
8. Language settings: Chinese, English, Japanese, French, German, Russian, Italian, Arabic, Korean, etc.
9. Crosshairs: Support (8 horizontal lines, 8 vertical lines)
10. White balance: Support automatic and manual, support RGB adjustable
11. Exposure: Support automatic and manual
12. File format: Video MP4, Photo jpg
13. Camera interface: Support C (25mm) / CS interface
14. Mirror settings: Standard / horizontal mirror / vertical mirror / horizontal + vertical
15. Light source frequency: 50hz 60hz
16. Measurement: Support window XP/7/8/10 system, PC software with measurement function is given
1. Anti-reflection coating, high refractive index, bright and clear imaging
2. Made of metal mirror body, standard interface, universal for stereo microscopes
3. Super large field of view, more comfortable viewing

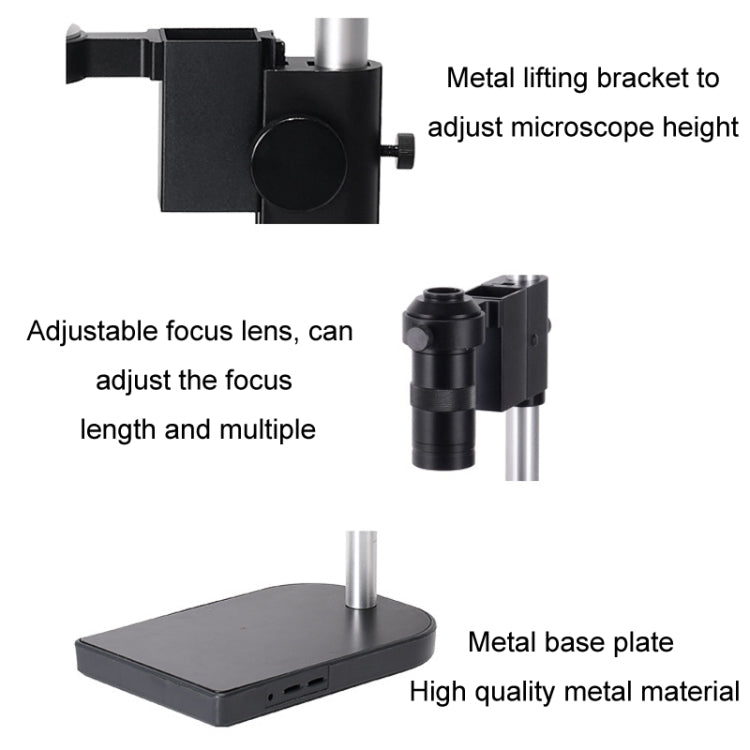

4. Metal lifting bracket can adjust the height of the microscope
5. The ring light has 56 LED beads built in, high brightness and adjustable light source size, low energy and long life
6. The microscope camera is equipped with CMOS1/2.33 sensor with high sensitivity to present rich picture effects
7. High-frequency zoom lens, high-quality optical system, optical components coated with special film layers, forming clear, bright and flat images
8. Widely used in microelectronics, molds, precision machinery, jewelry, watches, accessories, fingerprint identification, ticket identification, printing, mobile phone repair, archaeology, biological anatomy, school teaching and other fields, especially suitable for observing the surface microstructure of large objects
Photo, video, measurement functions:
1. Photo: Click the photo button to capture a photo, click the small arrow on the right side of the photo button, and a pop-up menu can be used to set the file format and photo size
2. Video: Click the video button to start recording, click again to stop recording, and the video file is an H.264 file with the mp4 suffix
3. Browse: Click the browse button to open the location where the image file is stored with Windows Explorer
