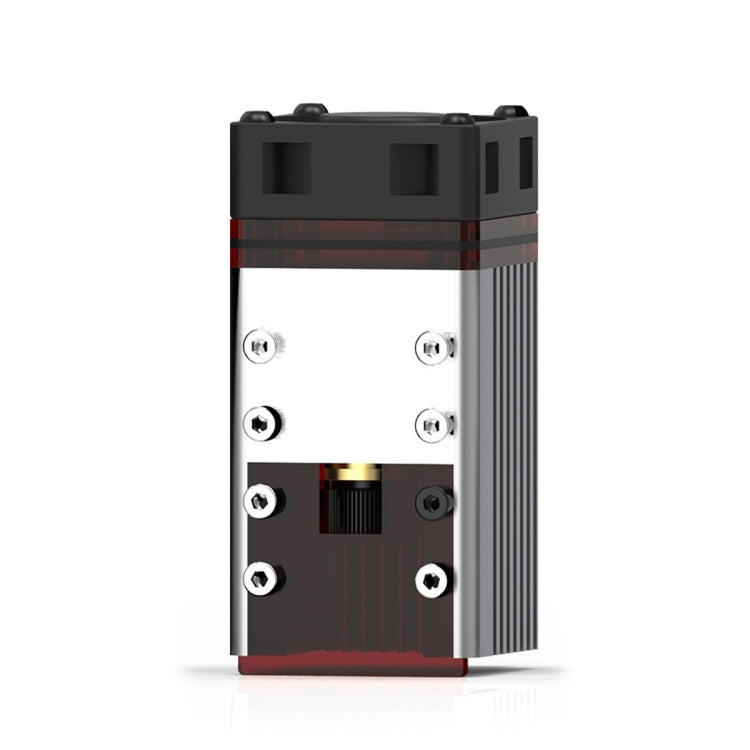

NEJE N40630 7.5W 450nm Laser Engraver Module Kits

Name: NEJE N40630 7.5W 450nm Laser Engraver Module Kits
Brand: NEJE
SKU: EDA0035711
Price: 2399.00 ZAR
Availability: InStock

R 2,399.00

Sale Sold out

FREE DELIVERY on all orders.

🔥 Buy 2 items, get 25% off 3rd item 🔥 Today only!

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1.Designed for laser engraver, 3D printer, CNC mill, arduino project.

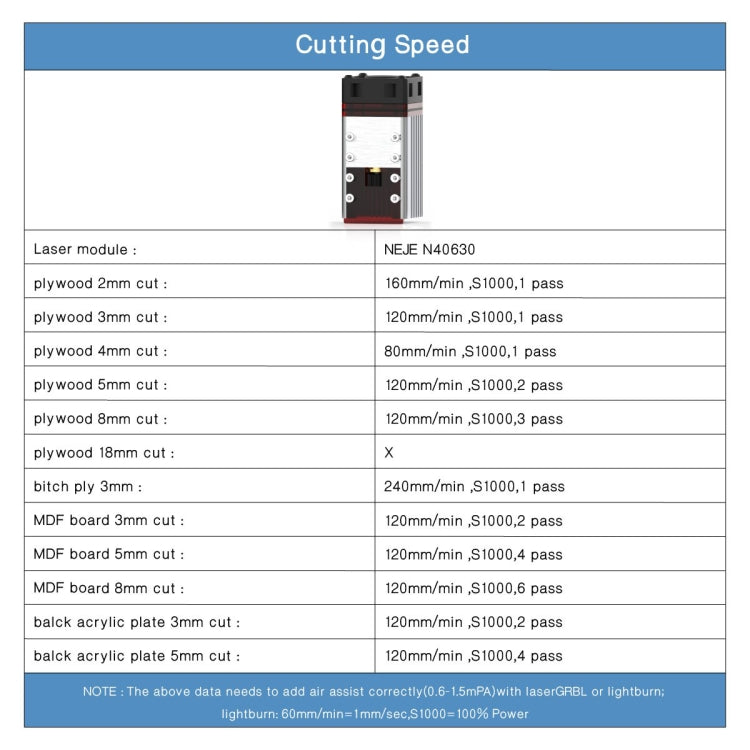

2. 7.5W Optical power output, 4mm plywood from 1 pass(speed 100).
3. More Safety, Built-in protective glass to protect eyes! Even without wearing protective glasses, the operation is more comfortable.
4. More Quiet, Intelligent drive adjust the cooling fan speed according to laser temperature.
5. Easy use, Digital PWM wave pulse signal generator adjustable frequency duty cycle board for NEJE laser module.

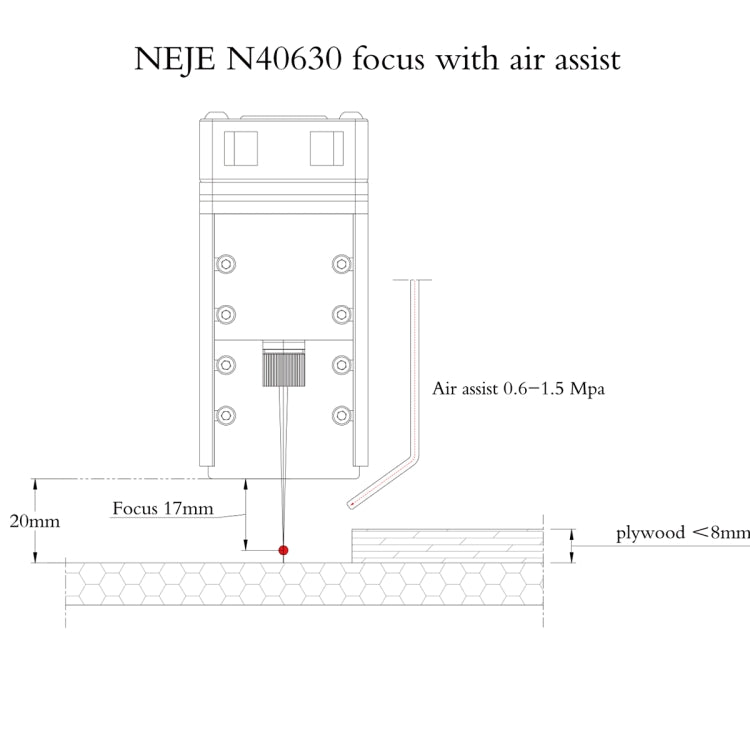

6. The slidable mounting fixture is provided for easy adjustment of focus.

Specification
1. Heatsink Material: Aircraft Aluminum + Brass Shell
2. Luminous Color: Blue
3. Section Size: 40mm x 40mm
4. Cooling Mode: Temperature sensor intelligent control + 10000 rpm 40mm cooling fan
5. Dimension: 60 x 40 x 40mm
6. Adapter Plug: 5.5 2.1 port
7. Can Engrave: MDF/Balsa/Paper/Wood/Fabric/Plastic/Leather/Plywood/Foam Paper/Anodized Aluminum
8. Can Not Engrave: Metal/Glass/Stone/Ceramics/PCB/Stainless Steel/Reflective Material/ Transparent Material

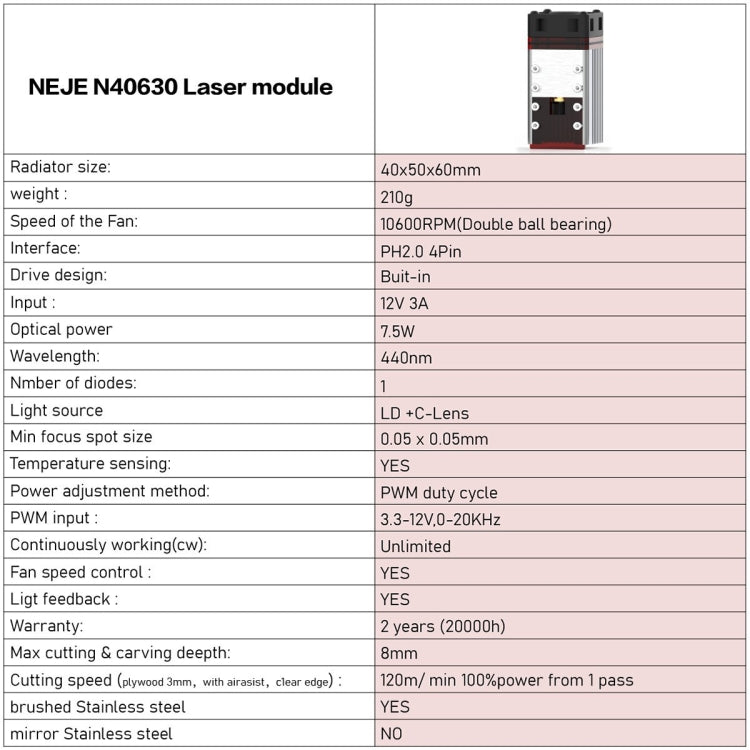

Technical Parameters
1. Optical power output: 5.5W~7.5W
2. Wavelength: 445-450nm
3. Beam Shape: Dot (Focusable)
4. Working Voltage: DC 12V
5. TTL&PWM Modulation: YES, compatible with both TTL & PWM Modulation
6. Input Voltage: DC12V 3A
7. PWM/TTL Input: DC3.3V-12V
8. Input Interface: PH2.0-4Pin (+,-, PWM/TTL, Temperature), 3Pin (+,-, PWM/TTL) , 2Pin+2Pin (+,-) + (PWM/TTL,-)
9. Drive Mode: External ACC
10. Safe temperature range: <60 degrees Celsius
11. Module weight: 202g (The lighter the weight, the smaller the move inertia, the better the performance)
12. Life Time: 10000-20,000 hours

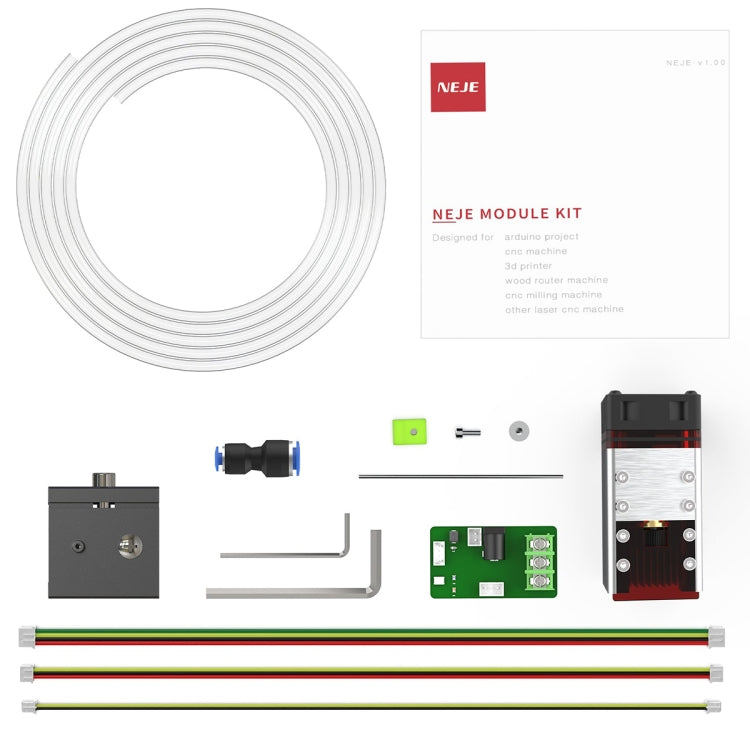

Package Included
- 1 x Laser Engraving Module
- 1 x Laser Module Sliding slot
- 1 x 4 Pin Cable(32cm Cable)

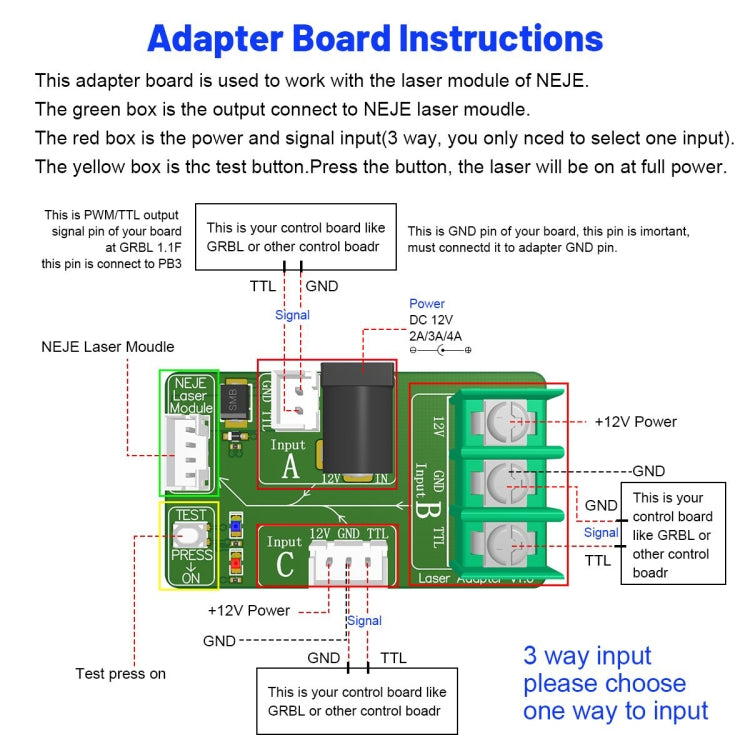

- 1 x NEJE interface tranfer board
- 1 x 2.5mm L-shaped wrench
- 1 x 5mm L-shaped wrench
- 1 x 3pin input cable
