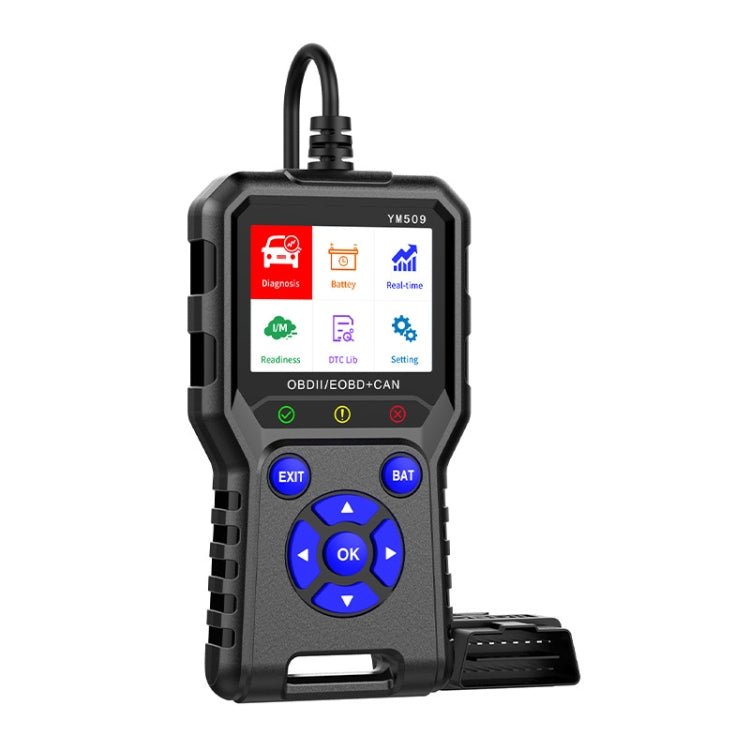

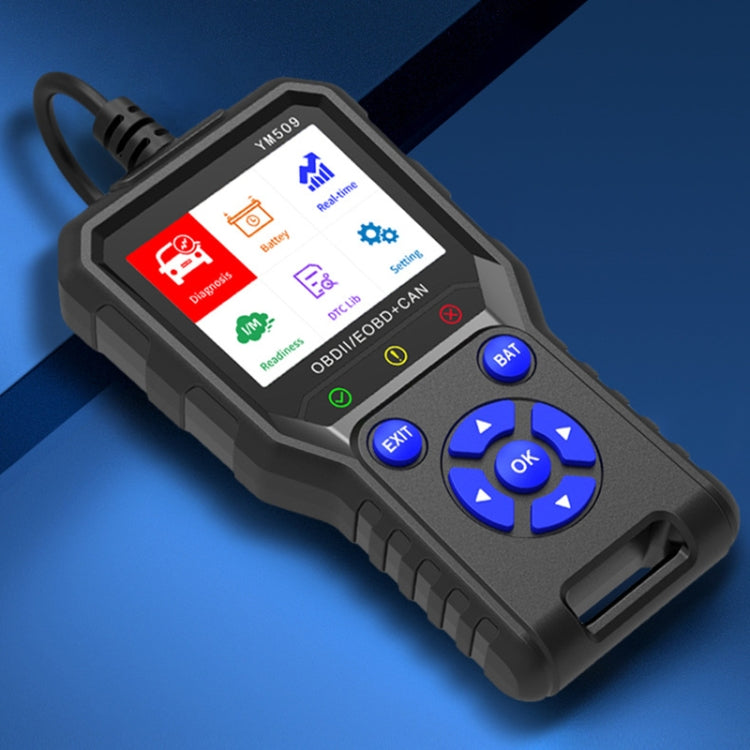

OBD2 Car Engine Fault Detection Diagnostic Instrument

Name: OBD2 Car Engine Fault Detection Diagnostic Instrument
Brand: PMC Jewellery
SKU: TBD06051947
Price: 739.00 ZAR
Availability: InStock

R 739.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

1. Diagnostic method (OBD line): wired

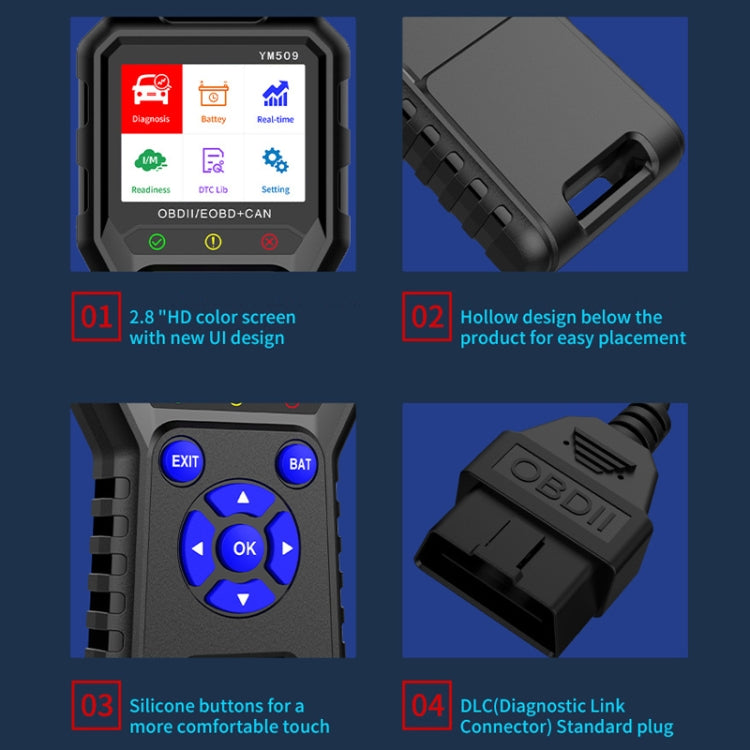

2. Screen size: 2.8 color screen
3. Working voltage: 5-18V
4. Working current: 50ma
5. UI interaction, full picture overlay, GPU Turbo technology, faster response and lower latency
6. English electronic manual available worldwide
7. Silicone buttons, adding pot pieces for better operation
8. The buzzer sound volume can be adjusted in ten levels
9. The backlight brightness can be adjusted in ten levels
10. Built-in 13 languages ??(Chinese, English, Korean, Japanese, Russian, Polish, Portuguese, Finnish, Italian, French, Spanish, Dutch, German)

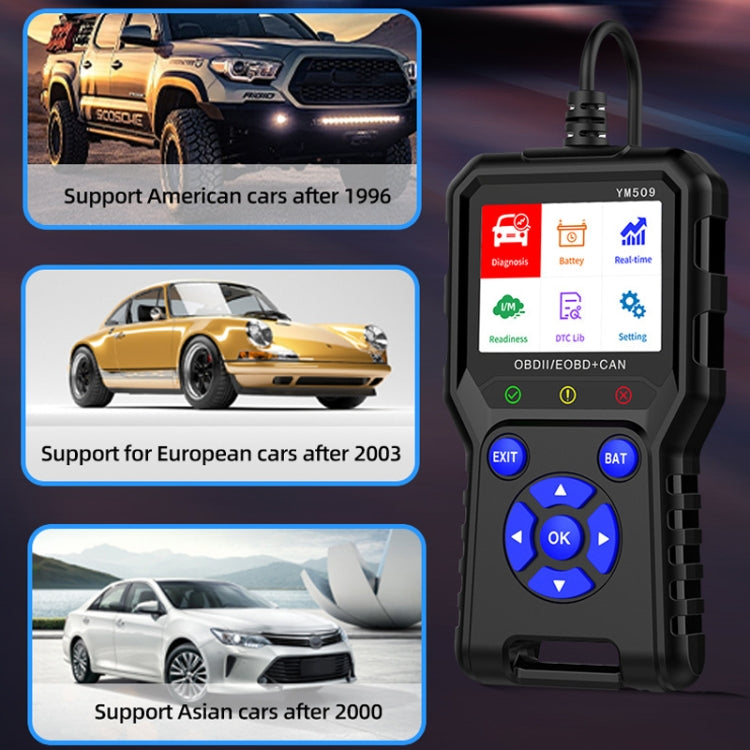

11. Supported models: Support most European models after 2003, and American models after 1996
12. Most models, 12V gasoline vehicles
13. Product size: 157x86x26mm

Detection function:
1. Supports nine standard protocols of OBDII/EOOBD to read vehicle engine fault codes
2. Clear engine fault codes

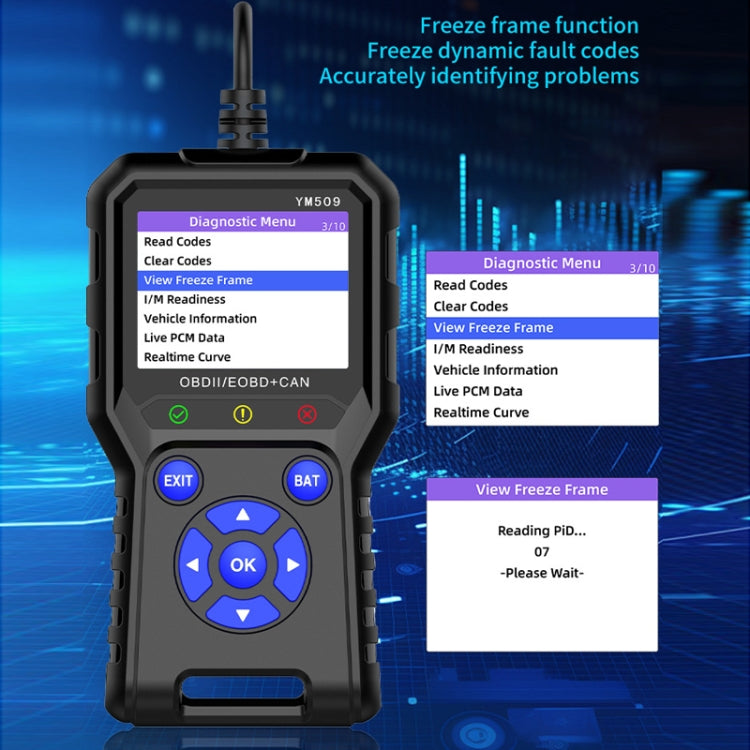

3. Freeze frame of vehicle faults
4. I/M ready status
5. Vehicle information
6. Real-time vehicle data stream

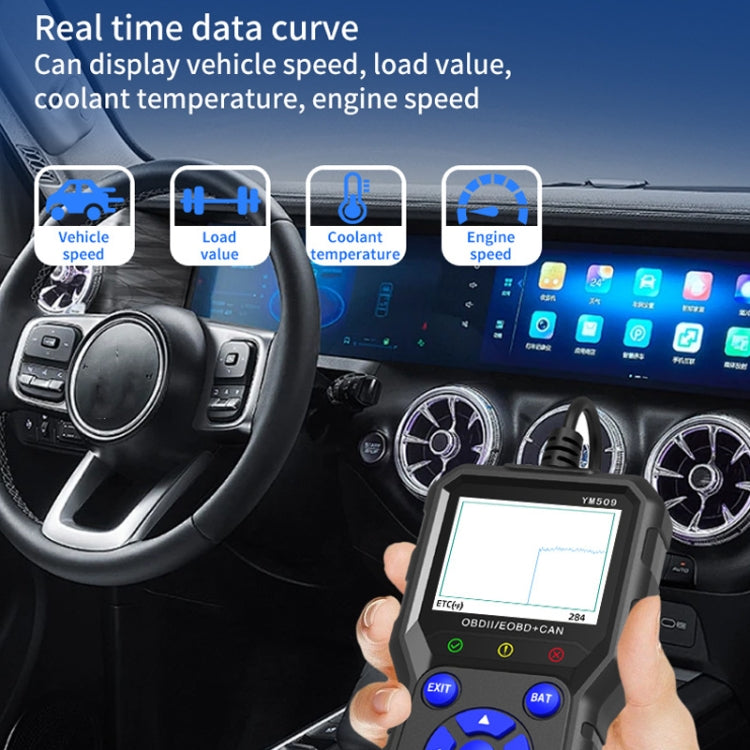

7. Real-time curve of vehicle data
8. Mode 6 detection (component system test)
9. Mode 8 detection (fuel evaporation system)
10. Oxygen sensor test

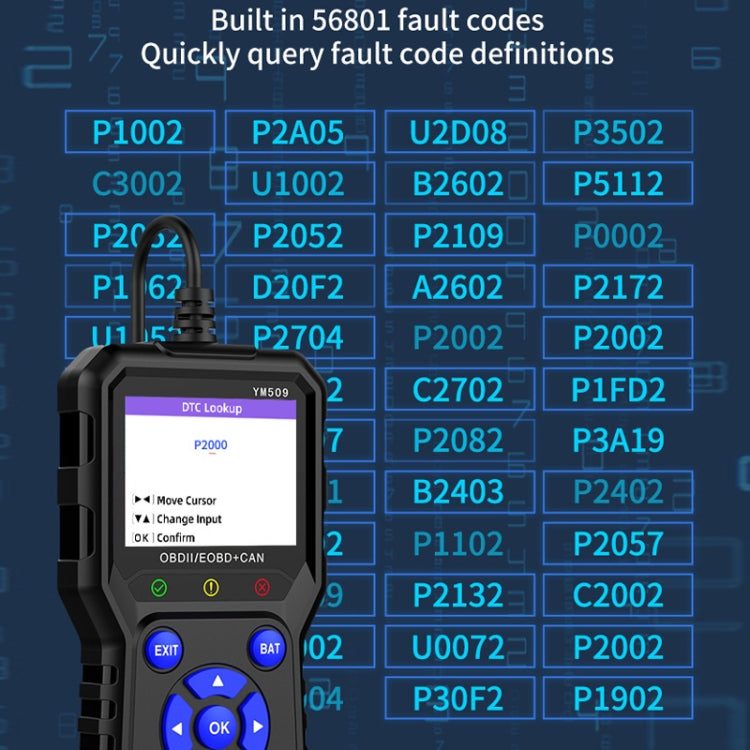

11. Fault code query

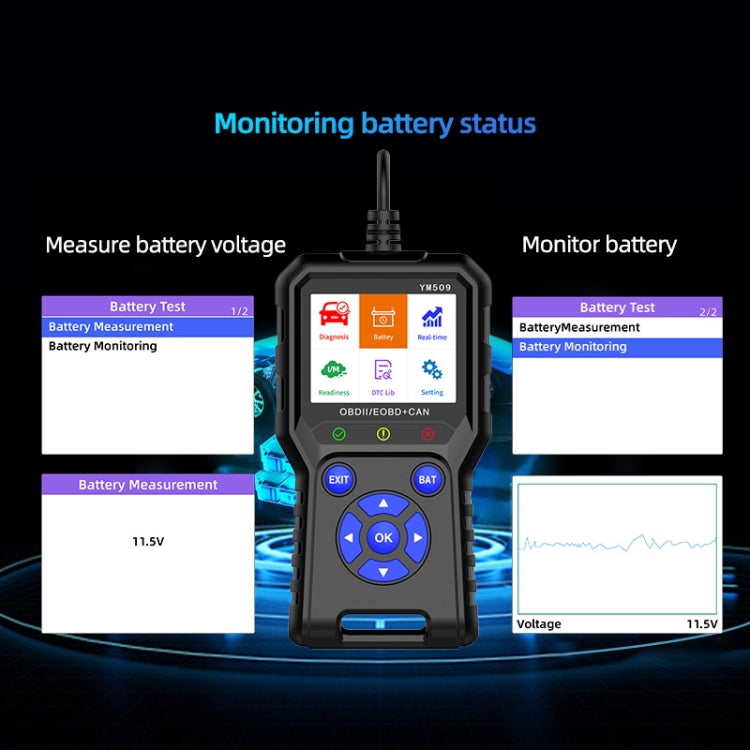

12. Vehicle battery voltage reading
13. Vehicle battery voltage monitoring

Support protocol
1. SAE J1850 PWM (41.6Kbaud)
2. SAE J1850 VPW (10.4Kbaud)
3. ISO9141-2 (5 baud init, 10.4Kbaud)
4. ISO14230-4 KWP (5 baud init, 10.4 Kbaud)
5. ISO14230-4 KWP (fast init, 10.4 Kbaud) 6. ISO15765-4 CAN (11bit ID, 500 Kbaud) 7. ISO15765-4 CAN (29bit ID, 500 Kbaud) 8. ISO15765-4 CAN (11bit ID, 250 Kbaud) 9. ISO15765-4 CAN (29bit ID, 251 Kbaud)
