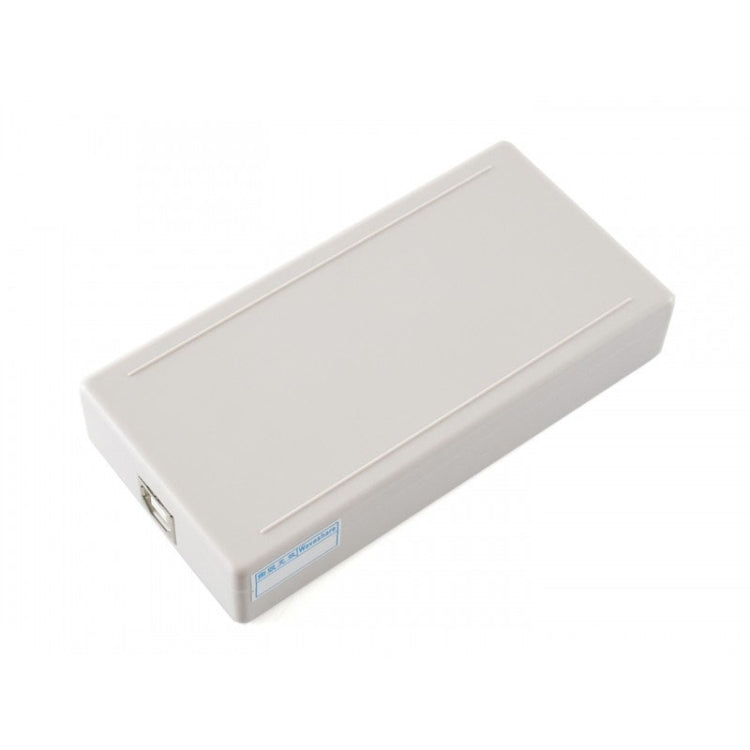

Platform Cable USB, Programmer & Debugger for Xilinx Devices
Platform Cable USB, Programmer & Debugger for Xilinx Devices
In stock
🔥 Buy 2 items, get 25% off 3rd item 🔥 hurry while stock lasts!
Couldn't load pickup availability
FREE Shipping
FREE Shipping
FREE SHIPPING at checkout. Ships via Buffalo Logistics. Fully insured.
Handling time: 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)
Transit time: 5 - 10 working days.
Overseas Warehouse: Shipping from China.
Duties and Taxes
- No Additional Charges: The price you see is the final price—no hidden costs or extra taxes.
Get It Now, Pay Later
Get It Now, Pay Later
Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.
Return Guarantee
Return Guarantee
For whatever reason, if you are unsatisfied with your order within 7 days, you can return it to us in new condition.
Payment & Security
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.
Missing/Wrong Items Guarantee
Missing/Wrong Items Guarantee
If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.
Overview

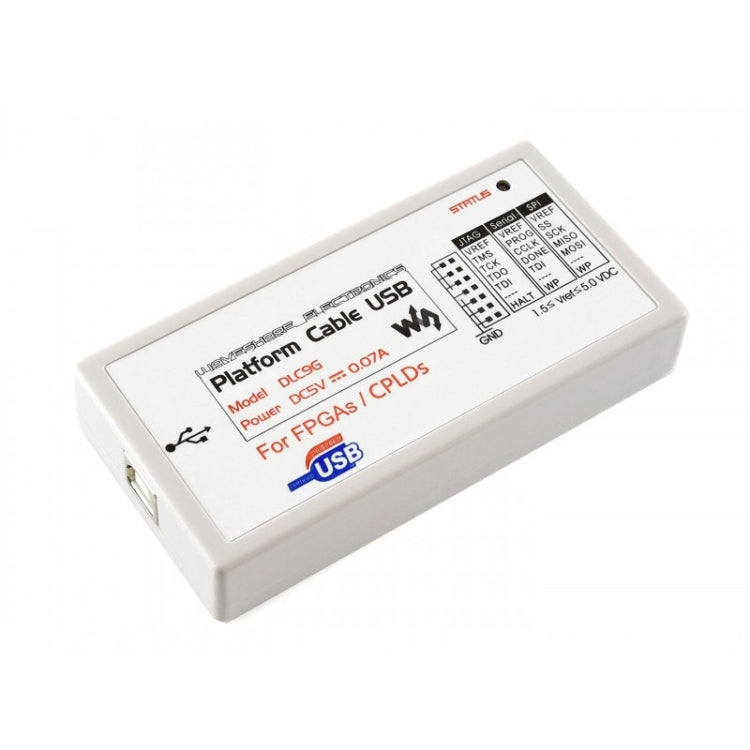

The Platform Cable USB a USB compatible cable for in-circuit configuration and programming of all Xilinx devices. It is compatible with the original XILINX Platform Cable USB.
Features
- Performance
1. Using CY7C68013A+FPGA solution, fully compatible with the original XILINX Platform Cable USB
2. Programs all Xilinx devices, including FPGAs / CPLDs / ISP Configuration PROMs
3. Supports JTAG, Slave-Serial and SPI programming, to config all Xilinx devices
4. Interfaces to devices operating at 5V / 3.3V / 2.5V / 1.8V / 1.5V
5. Optional target clock frequency, supports XILINX software automatic frequency adjustment
6. Firmware auto upgrade, its possible to support more new released software and devices
7. Anti-static and multi-layers signal isolation, to protect the target and the programmer itself
- Supported software
1. Xilinx ISE
2. iMPACT
3. ChipScope
4. Vivado
- Supported devices
1. Xilinx FPGA devices: UltraScale / 7 series / Zynq / Kintex / Virtex / Artix / Spartan, etc.
2. Xilinx CPLD devices: XC9500 / XC9500XL / XC9500XV / CoolRunner XPLA3 / CoolRunner-II, etc.
3. Xilinx PROM devices: Platform Flash XCF00S / XCF00P / XL, etc.
LED Status
1. Red: USB connected
2. Yellow: USB connected, and Vref (the target board) is powered
How to Connect
1. Connects to PC: Via USB interface
2. Connects to target board: Platform Cable USB provides 3 different interfaces to connect with the target board: JTAG, Slave Serial, and SPI. The figure below shows the header pinouts of the interfaces:
Package contents

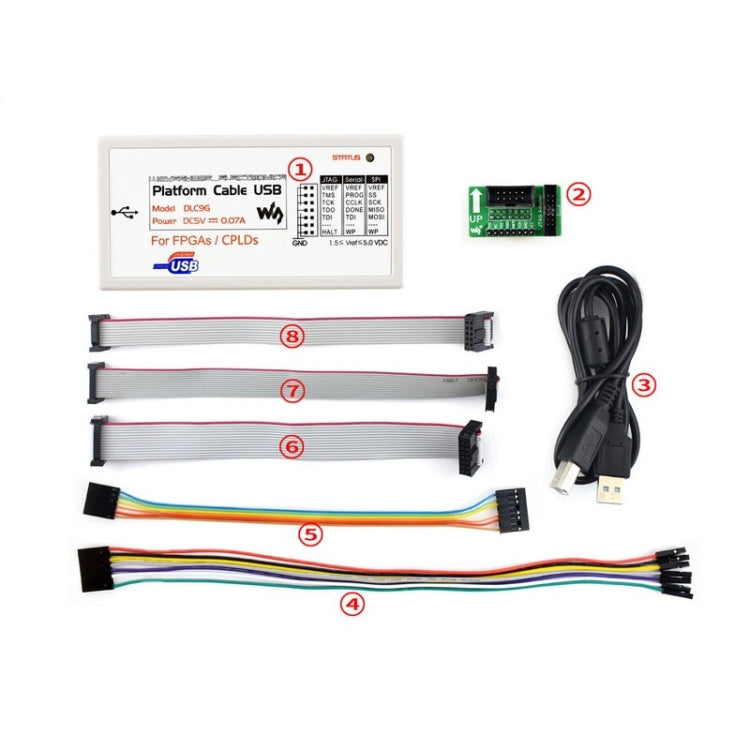

1. Platform Cable USB main unit x1
2. JTAG adapter x1
3. USB cable x1
4. 8-pin header to 7-pin separated cable x1
5. 8-pin header to 6-pin header cable x1
6. 14-pin (2.54mm pitch) JTAG cable x1
7. 14-pin (2mm pitch) JTAG cable x1
8. 10-pin (2.54mm pitch) JTAG cable x1
