Waveshare 5 Inch DSI Display, 800 × 480 Pixel, IPS Display Panel, Style:Touch Display

Waveshare 5 Inch DSI Display, 800 × 480 Pixel, IPS Display Panel, Style:Touch Display

Regular price R 1,179.00
Regular price Sale price R 1,179.00
Sale Sold out
FREE DELIVERY on all orders.

hurry! almost sold out...

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.


1. Resolution: 800 x 480
2. Display interface: DSI
3. Display panel: IPS
4. Viewing angle: 160 degrees
5. Touch screen models:
- Touch type: capacitive touch
- Touch points: 5 points touch
- Touch interface: I2C
- Touch panel: tempered glass panel
6. Application scenarios: smart home, automotive equipment, consumer electronics, industrial equipment, etc.
7. Screen size: about 5 inch

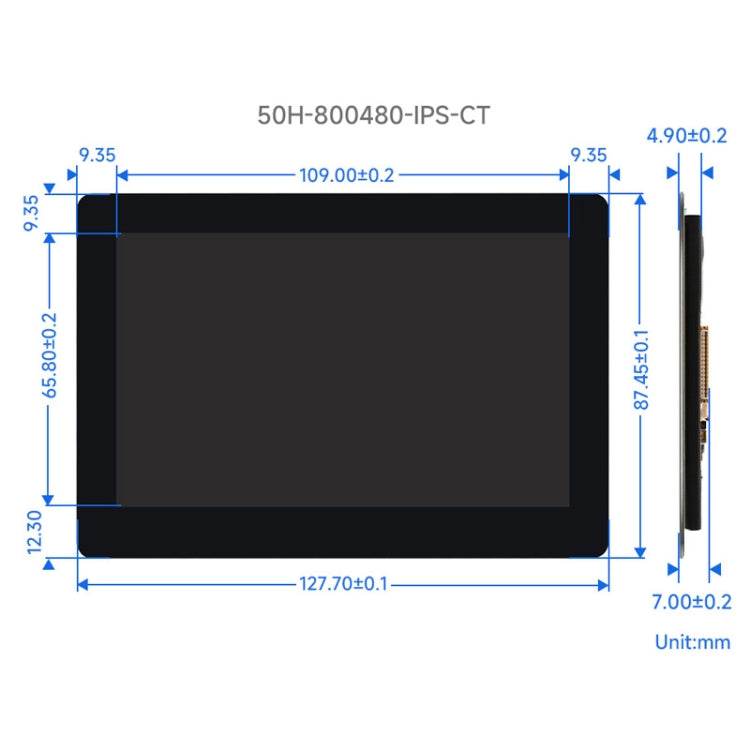

8. Size: no touch model about 12 x 7.58 x 0.51cm, touch model about 12.77 x 8.7 x 0.7cm

Features:
1. IPS display panel with good display performance and wide viewing angle of up to 160 degrees

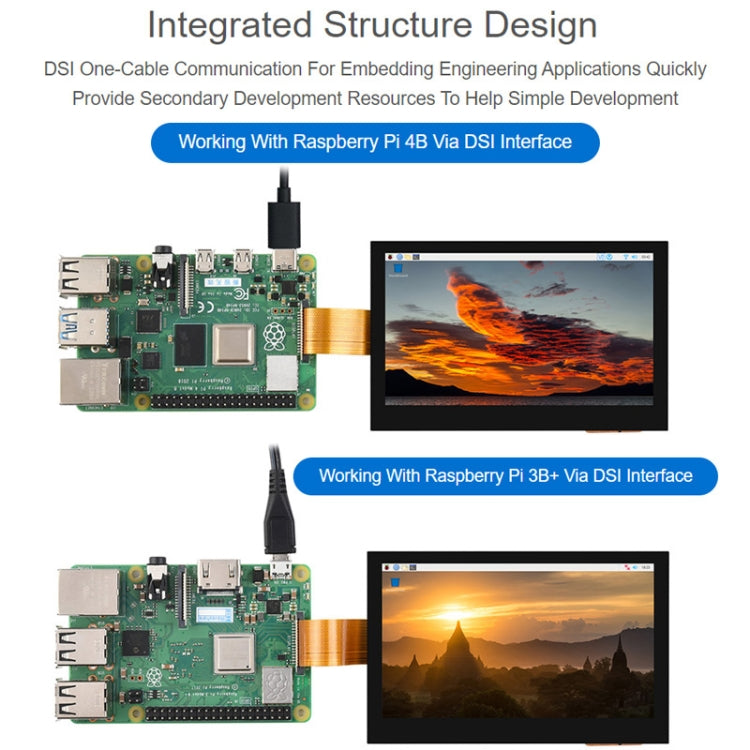

2. Integrated structure design, DSI one-line, easy to integrate integrated design, provide secondary development materials, help simple development

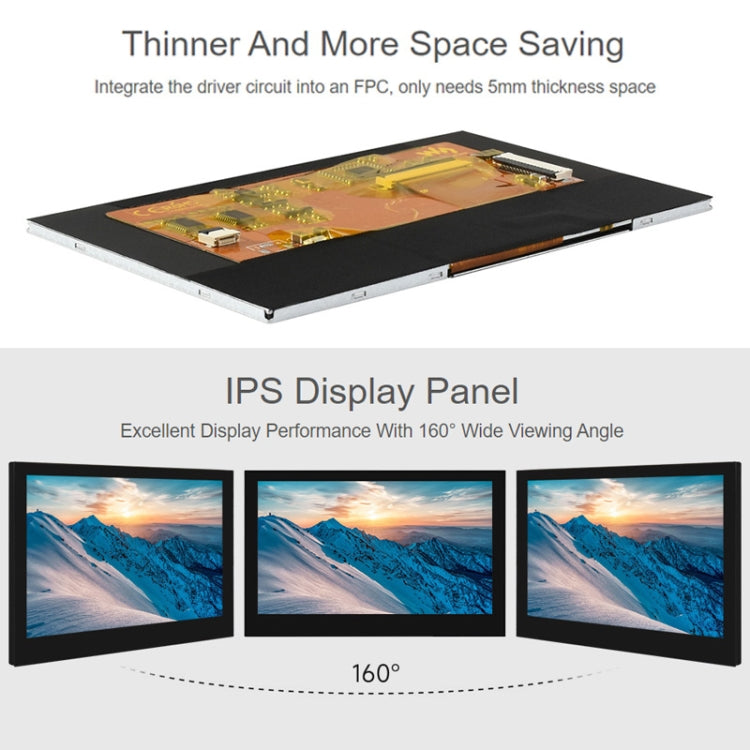

3. Thinner and more space-saving, the driver circuit is integrated into the FPC, about 5mm thickness space can be

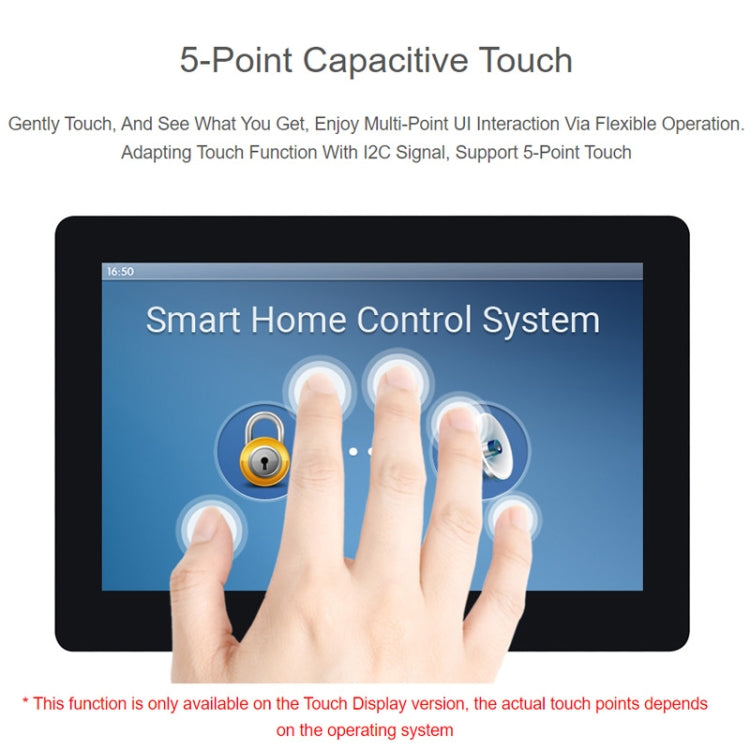

4. Touch models capacitive five-point touch, flexible operation, through the I2C signal, lead to touch function, support five-point touch

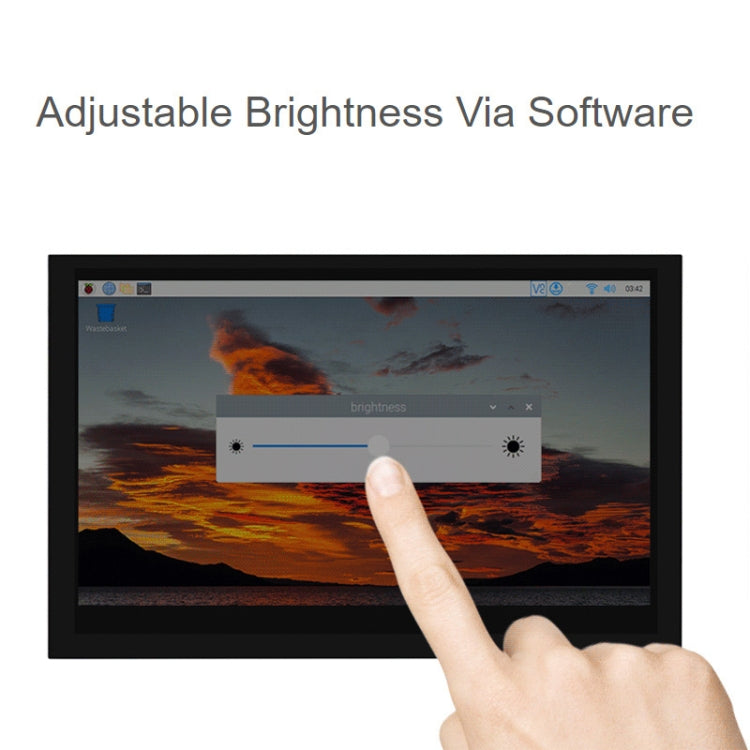

5. Touch model backlight brightness can be adjusted by software

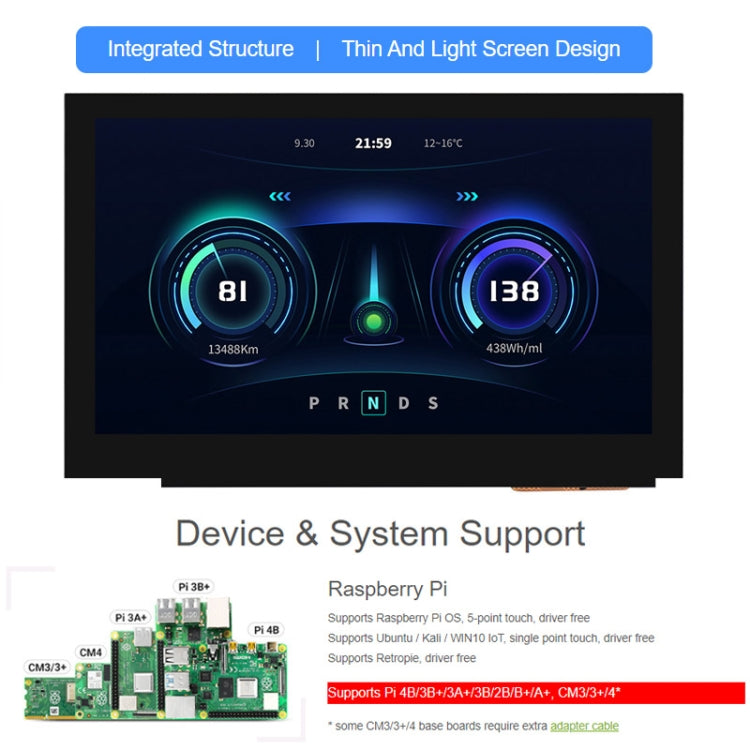

6. Support Raspberry Pi OS, 5-point touch, driver-free
7. Support Ubuntu / Kali / WIN10 IoT, single-touch, driver-free
8. Support Retropie, driver-free
9. Support Pi 4B/3B+/3A+/3B/2B/B+/A+, some CM3/3+/4 backplanes need to buy adapter cable separately
