WAVESHARE

Waveshare Binocular Camera Base Board with Interface Expander for Raspberry Pi Compute Module 4

Name: Waveshare Binocular Camera Base Board with Interface Expander for Raspberry Pi Compute Module 4
Brand: WAVESHARE
SKU: DIY0214
Price: 1609.00 ZAR
Availability: InStock

R 1,609.00

Sale Sold out

FREE DELIVERY on all orders.

🖤🟡 Add 2+ items to your cart for an early Black Friday discount! Hurry, stock is almost gone! 🟡🖤

FREE Shipping

FREE SHIPPING on all orders. Fully Insured.

Handling time 1 - 3 working days. (PMC has to process your order and put all your items through its strict quality-control tests.)

Transit time 7 - 15 working days.

Get It Now, Pay Later

Pay using Mobicred. Simply choose Peach Payment >> Mobicred at checkout, and we’ll ship it once the order is approved.

Return Guarantee

For whatever reason if you are unsatisfied with your order within 7 days you can return it to us in new condition for a refund minus the shipping charges.

Payment & Security

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Missing/Wrong Items Guarantee

If you receive a parcel with missing/incorrect/secondary packing items, please contact us within 7 days of delivery and provide the relevant proof. PMC will make compensation based on the damage situation.

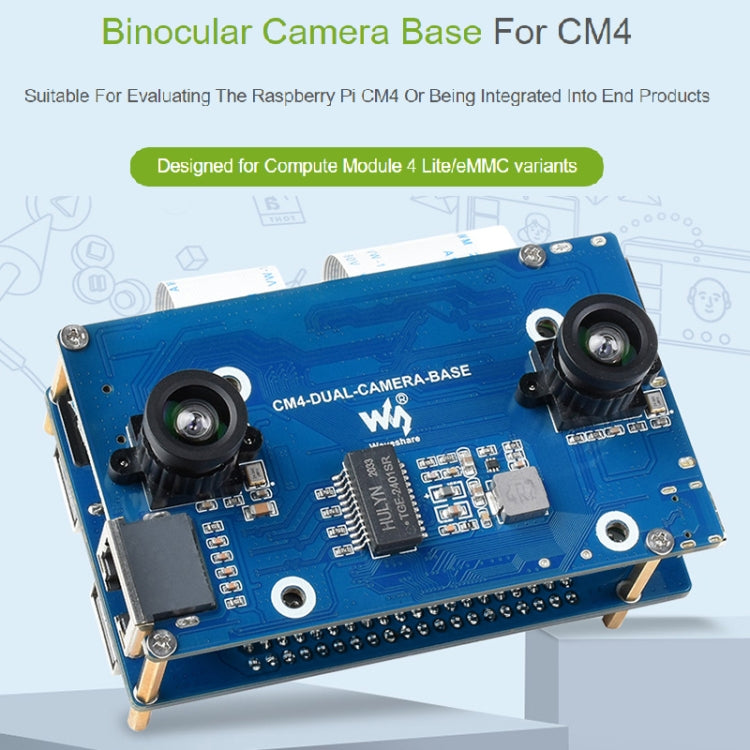

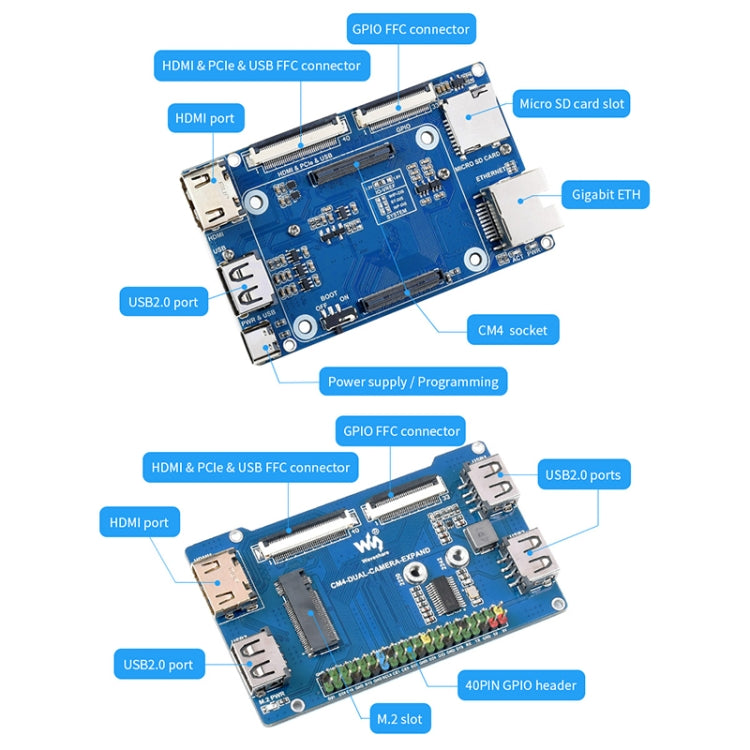

Camera Base Board

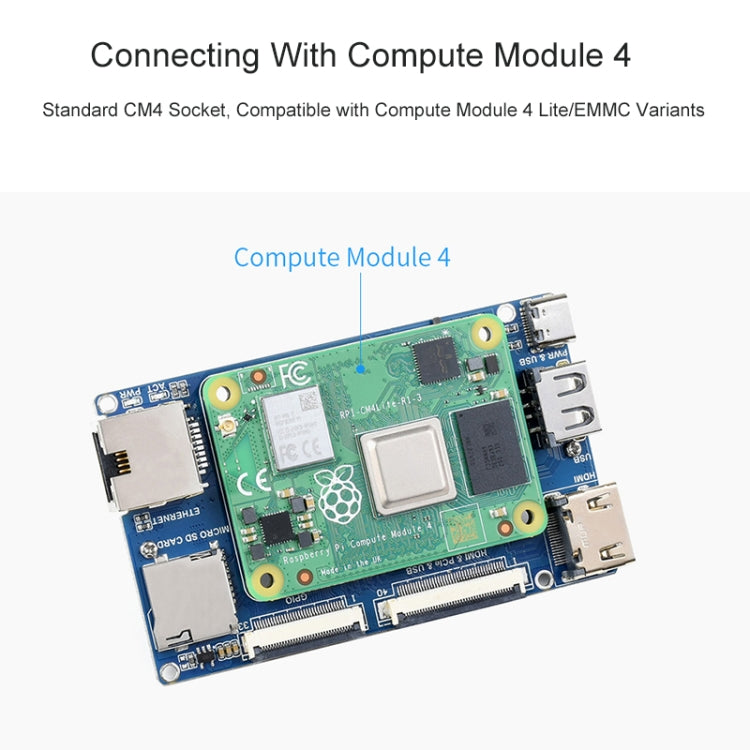

1. CM4 socket: Suitable for all variants of Compute Module 4
2. Networking: Gigabit Ethernet RJ45
3. USB: USB 2.0 x 1
4. FFC connector:
- HDMI-compatible & PCIe & USB FFC connector x 1
- GPIO FFC connector x 1
5. Dual-lens camera
- Pixels: 8MP
- Sensor: IMX 219
- Resolution: 3280 x 2464 (per channel)
- CMOS size: 1/4 inch
- Aperture: F2.4
- Focal length: 2.6mm
- FOV: 83/73/50 degree (diagonal/horizontal/vertical)
- Distortion: Less than 1%
- Baseline length: 60mm
6. Video: HDMI-compatible x 1, supports 4K 30fps output
7. Storage: MicroSD card socket for Compute Module 4 Lite (without eMMC) variants
8. Power input: 5V/2.5A

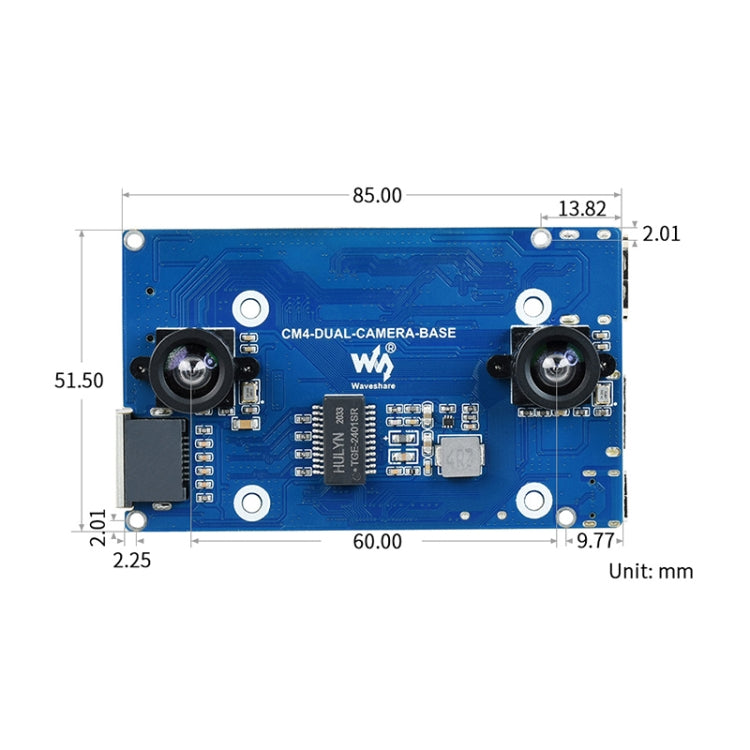

9. Dimensions: 85.0 x 51.5mm

Interface Expander
1. USB: USB 2.0 x 3
2. FFC connector:
- HDMI-compatible & PCIe & USB FFC connector x 1
- GPIO FFC connector x 1
3. Other connector:
- M.2 M KEY x 1, for connecting NVME SSD or communication module
- Raspberry Pi 40PIN GPIO header x 1
4. Video: HDMI-compatible x 1, support 4K 30fps output
5. Dimensions: 85.0 x 51.5mm

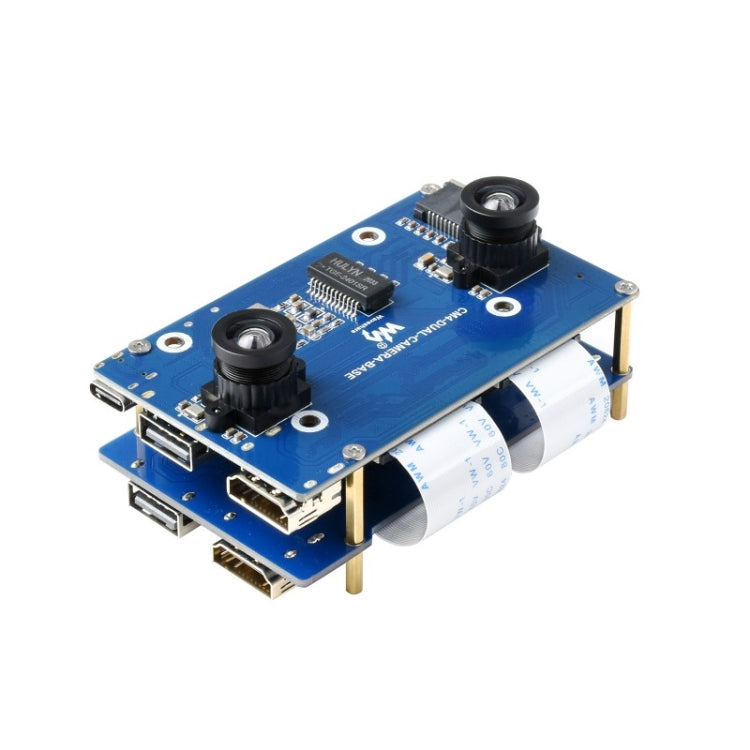

Package List
1. Dual camera base x1
2. Screws pack x1
3. Interface expander x1
4. FFC 2PCS x1
