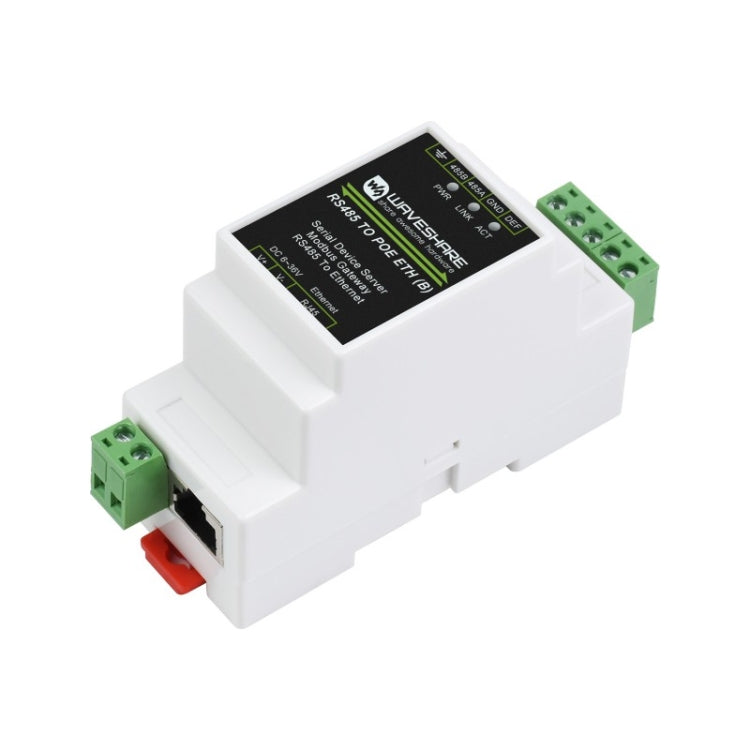

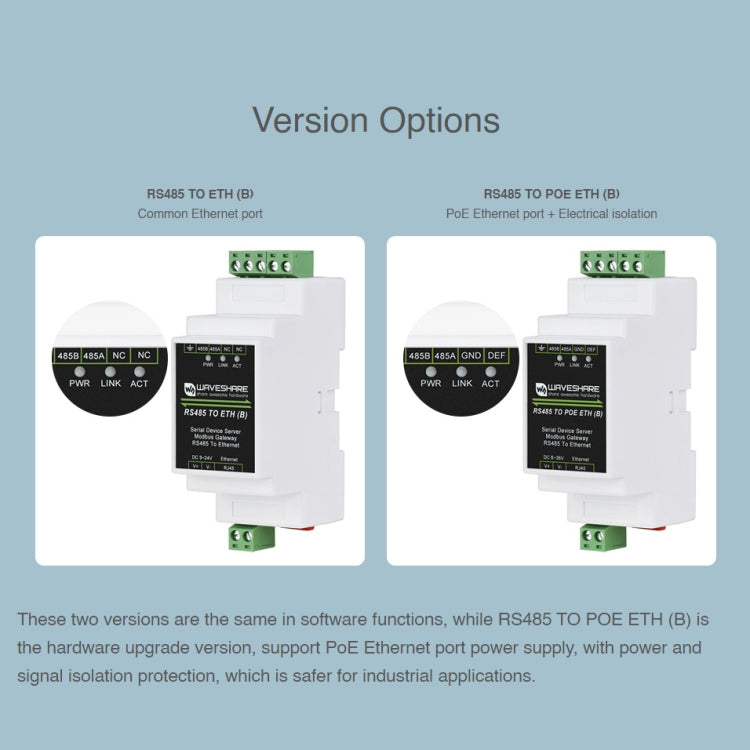

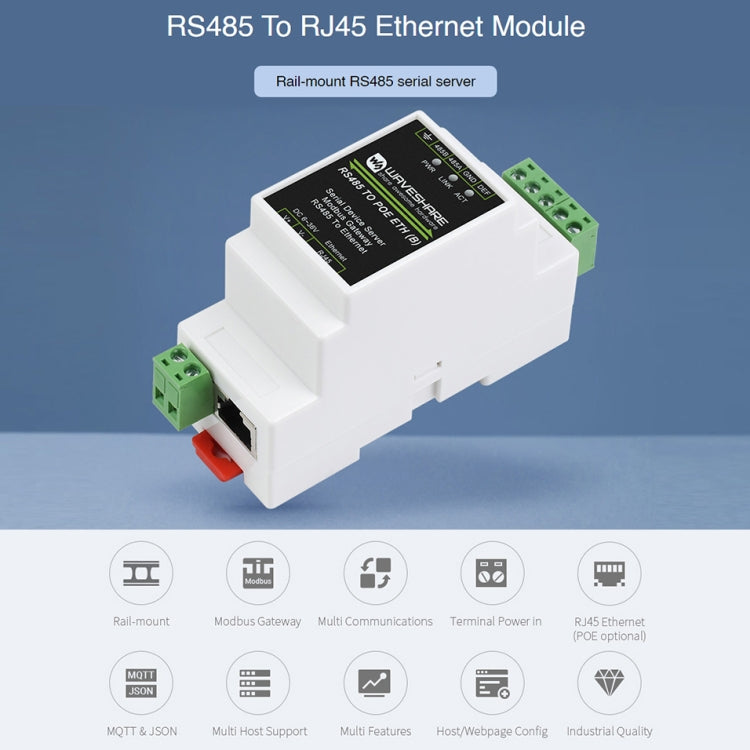

Waveshare Din Rail RS485 to RJ45 Serial Server with POE Function

• Product type: Mini PC Accessories
• Brand: WAVESHARE
• Compatibility: RS485 to RJ45 Serial Server
• Material: Durable
• Key feature: POE function
• Color/Variant: Not specified
• Intended use: Everyday use
• Category: Electronics Module

1. Power supply: 9-24V

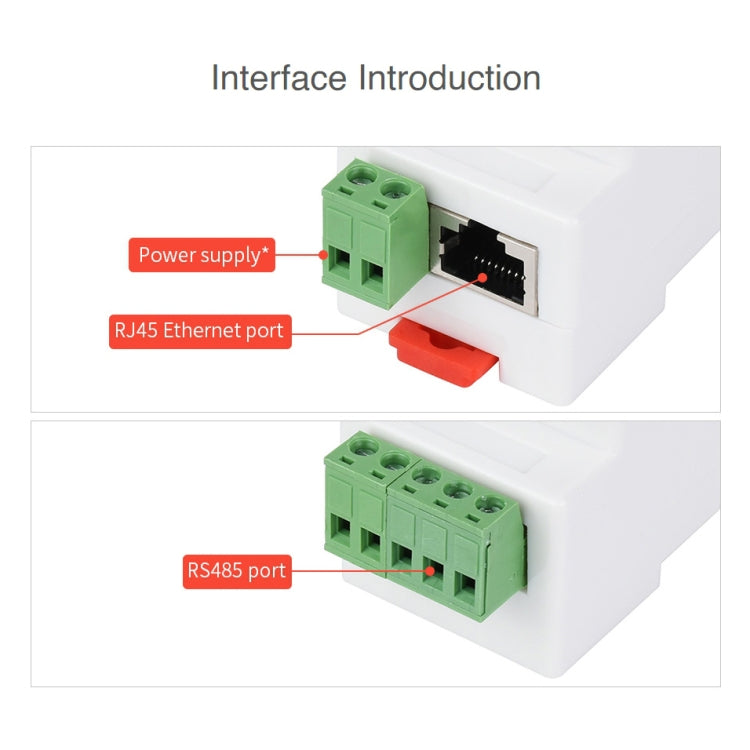

2. Communication interface: RS485 port x 1, Ethernet port x 13.
3. Baud rate: 300-115200 bps
4. Data bits: 5-9 bits
5. Configuration: host, web browser, device management function library
6. Communication method: TCP/IP direct communication, VCOM
7. Working temperature: -40 degrees to 85 degrees

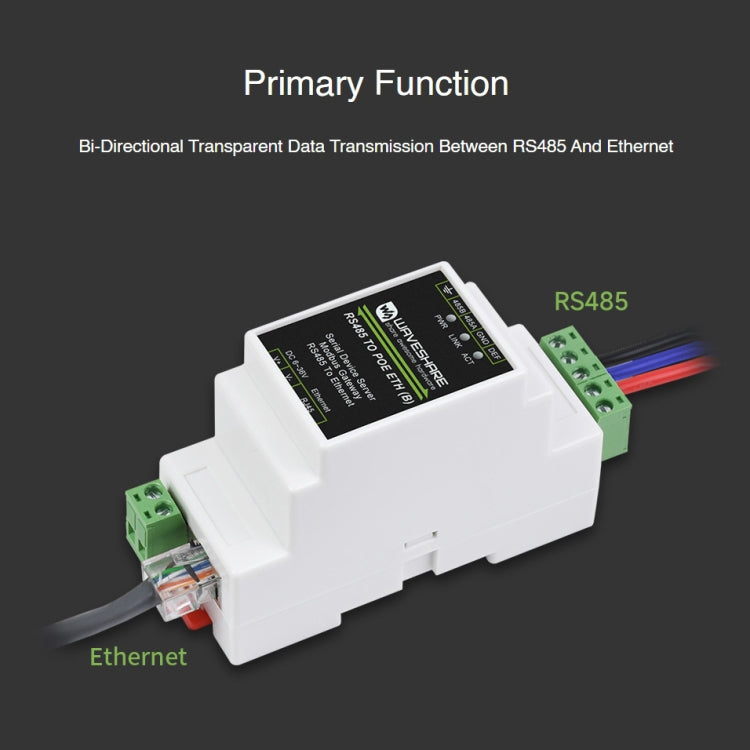

8. Main function: Bidirectional transparent data transmission between RS485 and Ethernet

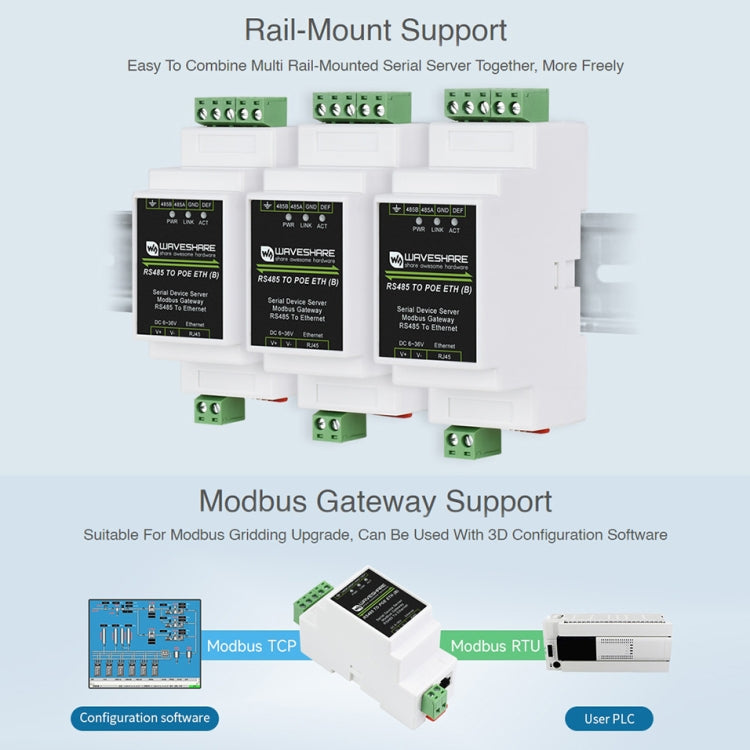

9. It is easy to combine multi-rail installed serial servers together, more freedom.
10. It is suitable for Modbus grid upgrade and can be used in conjunction with 3D configuration software.

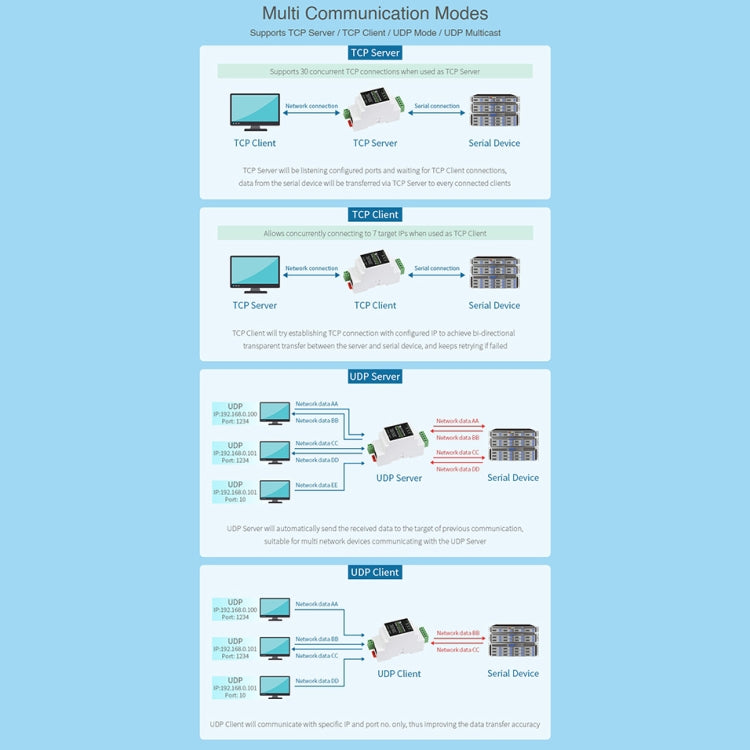

11. Support TCP server / TCP client / UDP mode / UDP multicast.

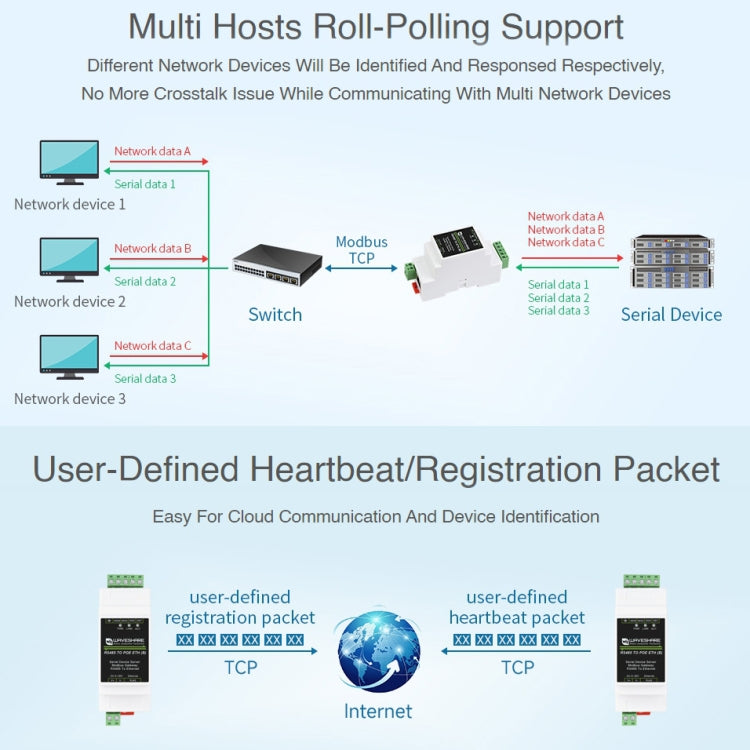

12. Multi-host rolling polling support, easy for cloud communication and device identification.
